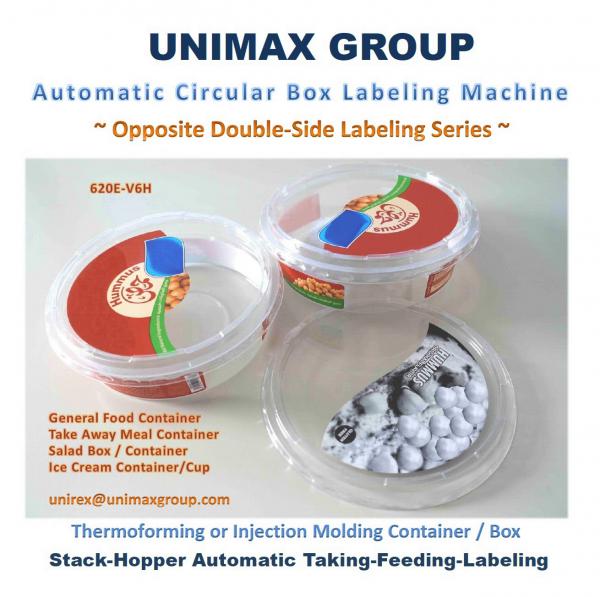

Circular Box Opposite-Side Double-Labeling Machine

Product ID: Circular Box Opposite-Side Double-Labeling 620E-V6H Series (59-2)

￭ Model: 620E-V6H
￭ Application:
• For Circular Box Body Opposite-Side Double-Labeling
• No Need to Stop The Machine for Supplementary Filling
• Example: Salad Box, Food Box, Candy Box, Meal Take-Away Box ....
￭ Main Features:
• 620E-V6H: Box to be Stacked in (3-in-1)*2 Stack-Hopper Magazine
• 620E-V6H: Box to be Taken from Bottom Automatically
• Box Feeding Automatically
• Servo Control Precise Dual-Labeling System
• Labeled Box Automatic Stacking for Collecting & Packing
• 620E-V6H: Labeled Box Exchangeable Stack-Hopper for Collecting.

Specifications:

￭ Main Specification:
• 620E-V6H Labeling Speed: Approx. 100 PCS/MIN.
• Servo Control Conveyor: 3500 *200 * 900 MM / 6400 * 200 * 860 MM
• 620E-V6H : Equipped with Mold-Sets * 65 Sets
• Equipped with Automatic Position Setting System
• Equipped with Enhanced Double-Side Labeling System
• Label Size: Max. 120 (L) * 20 (H) MM

• 620E-V6H
- Equipped with NG Product Taking-Collecting System
- Equipped with CCD Detect & Monitoring System
- Equipped with Aluminum Safety Protection Door & Frame

• Machine Dimension: Approx. 6,800 *1,500 *1,780 MM

Features:

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:

Minimum Order: Negotiable
