311-EGVA-S5HBC High Speed Egg Tray Lid/Egg Carton Labeling Machine (Automatic Feeding-Batch Separation-Collecting System)
High Speed Egg Tray Lid /Carton Labeling Machine
Product ID: Plastic Thermoforming Egg Carton/Tray Lid High Speed Labeling 311-EGVA-S5HBC Series(154)
■ Model: 311-EGVA-S5HBC
High Speed Quantitative Batched Automatic Collecting
♦ Pressure Sensitive Self-adhesive Type of Label
♦ Single-Head Labeling System
♦ For Plastic Thermoforming Egg Tray Lid or Clamshell.
♦ Automatic 4-Jaw Robot continuous Taking System
♦ Side Press Aided Angle Labeling System.
♦ Automatic Continuous Supplementary Feeding
♦ No Need to Stop the Machine For Re-filling.
♦ Automatic Pre-Set Quantitative Separation
♦ Automatic Egg Tray Lid Take-Off System.
♦ Batched Quantity Automatic Collecting System.

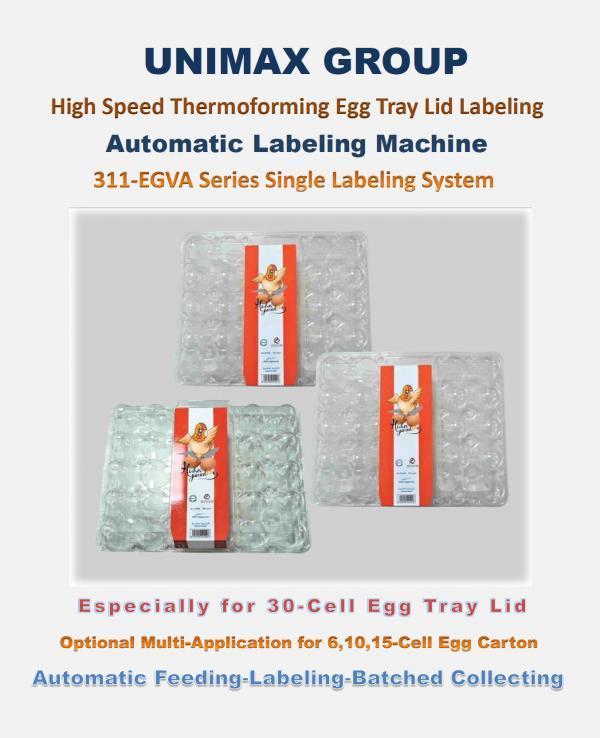

■ Product Example:
- 30-Cell Egg Tray Lid
- Optional: Clamshell Products
- Optional: 6, 10, 15-Cell Egg Carton
Specifications:
■ Specification:
• Reference Labeling Speed:
Approx.60~ 80 Pieces/Min (30-Cell Egg Carton Lid)
• Reference Labeling Product: Lay-Flat 300 (L) * 250 (W) mm.
• Main Label: Max. 200 (L )* 120 (H) Included Base Paper.
• Label Roll: ø 300 (O.D.) * 76 (I.D.) mm.
• Machine Size: Approx. 6,500 (L) * 1,000 (W) * 1800 (H) mm.
Features:
■ Features:
• Japan "MITSUBISH" PLC Control System.
• Japan "YASKAWA" Servo Motor Control System.
• Interfaced 10" Colorful HMI Touch Screen Monitor.
• Label Sensor: "SICK" Optoelectronic Sensor.
• Product Detect Sensor:
“KEYENCE” or "OMRON" Optoelectronic Sensor.
• Equipped with 5 sets High Precision Servo Motor.
Order Information:
- Minimum Order: Negotiable
- Branded Product
