Specifications:

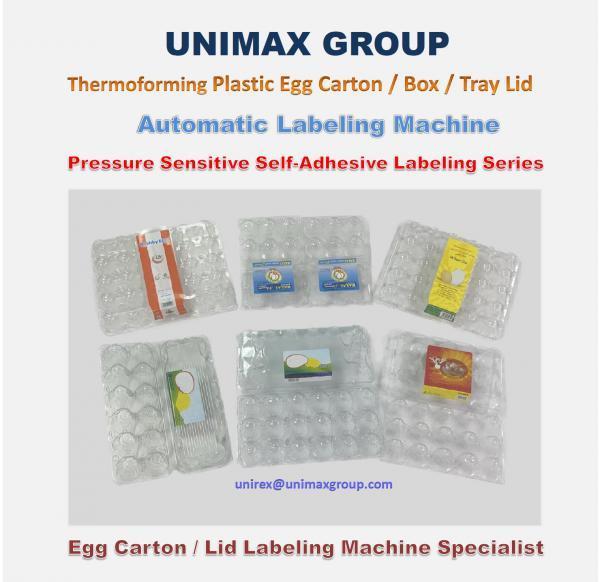

A) Self-Adhesive Labeling Series:
-   Plastic Vacuum/Thermoforming Egg Box/Carton/Tray Lid

￭ Model:
• 311-VA-EGAA-S3 / 311-VA-EGAA-S4
- Sophisticated and Practical Model for 1-Label Egg Carton/Tray Lid
- 311-VA-EGAA-S3: Continuous Collecting
- 311-VA-EGAA-S3: Quantitative Bulk Collecting
- Designed / Operation Speed: Approx. 40~50 / 30~45 pcs/min
• 321-VA-EGAA-S3 / 321-VA-EGAA-S4
- Sophisticated and Practical Model for 2-Label Egg Carton/Tray Lid
- 321-VA-EGAA-S4: Continuous Collecting
- 321-VA-EGAA-S4: Quantitative Bulk Collecting
- Designed / Operation Speed: Approx. 40~50 / 30~45 pcs/min
• 311-EGVA-S5HBC
- High Speed Model for Egg Tray Lid, Optional for Carton.
- Single-Labeling
- Designed / Operation Speed (30-Cell Lid / 6, 10, 15-Cell Box):
  Approx. 100~80 / 80~60 pcs/min (30-Cell Lid)
  Approx. 80~60 / 60~40 pcs/min (6, 10, 15-Cell)
• 322-EGVA-S7HBC
- High Speed Model for Egg Tray Lid, Optional for Carton.
- Double-Labeling
- Designed / Operation Speed (30-Cell Lid / 6, 10, 15-Cell Box):
  Approx. 220~180 / 200~160 pcs/min (30-Cell Lid)
  Approx. 200~160 / 160~120 pcs/min (6, 10, 15-Cell)
• 310-VS-EG-S1 / 320-VS-EG-S2 (For Egg Carton)
- 310-VS-EG-S1: Economical Type, Single-Label for Egg Carton
- 320-VS-EG-S2: Economical Type, Double-Label for Egg Carton
- Feeding & Collecting by manual
- Equipped with Egg box adapted transporting conveyor
- Designed / Operation Speed: Approx. 35~45 / 30~40 pcs/min
• 310-VS-EGMA (For Egg Carton)
- Stack-Hopper Type, Single-Label for Egg Carton
- Egg Carton Stack-Hopper Storage Feeding Type
- Equipped with Mold-Sets
- Designed / Operation Speed: Approx. 15~30 / 20~25 pcs/min

(B) Precut Paper Label by Hot-melt Glue Roller Gluing Type
 -    Plastic Thermo Forming Egg Box/Carton/Tray Lid
♦ Die-Cut General Paper Label.
♦ Hot-melt Glue Roller Gluing & Labeling System

￭ Model: EGVAC-66V:
• Main Label Machine: Hot-melt Gluing Type 66-Series * 1
• Label Size: Max. 250 (W) x 150 MM (L = Label Gluing Direction).
• Designed / Operation Speed: Approx. 25 ~30 / 22 ~ 27 Pieces/Min.
￭ Model: EGDHLP-68V:
• Main Label Machine: Hot-melt Gluing Type 68-Series *2
• Label Size: Max. 250 (W) x 220 MM (L = Label Gluing Direction).
• Designed / Operation Speed: Approx. 60 ~70 / 55 ~ 60 Pieces/Min

C). Label Insert Labeling Series:
 -   Plastic Vacuum/Thermoforming Egg Box / Carton / Tray

• 110-VA-EGAA-S4
- Automatic Label Inserting System
- Automatic Feeding & Collecting
- Continuous Supplementary Feeding System
- Automatic Collecting System
​- Equipped with Hot-Melt Glue Applicator
- Design /Operation Speed: Approx. 25~35 / 20~30 pcs/min.

Features:

￭ Control System:
• Japan "Mitsubishi" PLC Programmable Logic Control System
• Japan "YASKAWA" Servo Motor System
• Touch Screen Monitor Control System

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:

• Minimum Order: Negotiable
• Branded Product
