Specifications:

• Machine body and frame:
   Aluminum alloy with anodizing treatment & stainless steel parts
• Computerized labeling mechanism system,
• No scratch on label & Substances
• Conveyor: 2000 (L) x 350 (W) x 750 (H) mm
- Equipped with Japan “Orient” AC motor driving system
• With Italy Warm Gear Speed Reducer
• Label Detecting Sensor: “SICK” or “KEYENCE”
• Independent Control Labeling System
- (Labeling Position/Height/Angle)
• Label Size: Max. 120 / 300 (L) * 120 / 160 (W) mm,
- Including base paper.
• Label Roll Outside Diameter: ∮300 mm
• Label Roll Core Inner Diameter: ∮76 mm
• Easy to change labeling and conveyor speed
• Easy to adjust and control conveyor
- With labeling synchronously - Labeling & counting synchronously
• Easy to re-load label roll while running out the labels
• Short time needed, replacing label roll only,
- save time for stopping machine
• Labeling speed: 6 ~ 18 m/min
• Reference operation capacity:
   Approx. 30~40 pieces/min depend on product and operator
• Labeling accuracy: ± 2 mm
- (on the basis of smooth horizontal surface)
• Compressed air needed to be prepared by the buyer:
   6 KG/CM2 with dehumidifier system

Features:

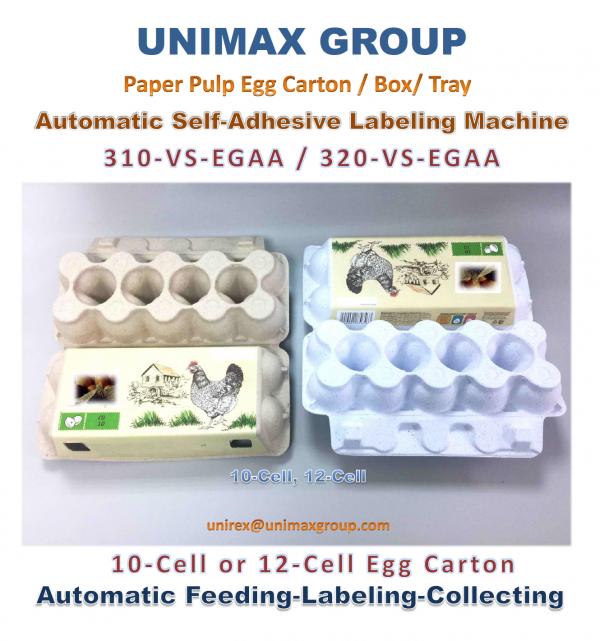

• Self-adhesive top-labeling system (nontransparent type of label)
• Equipped with side press aided labeling system
• Japan “YASKAWA” Servo motor control precise labeling system
• Programmable Logic Control (PLC) system (Japan “MITSUBISHI”)
• Colorful interfaced control  Touch Screen Monitor (HMI) system:
- “PROFACE”/“EASYVIEW”
• Labeling surface might exist air bubble in-between
- Depend on egg box surface and rigidness

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:

• Minimum Order: Negotiable
• Branded Product
