Specifications:

♦ Main Structure:
- Automatic Pressure Sensitive Labeling Machine

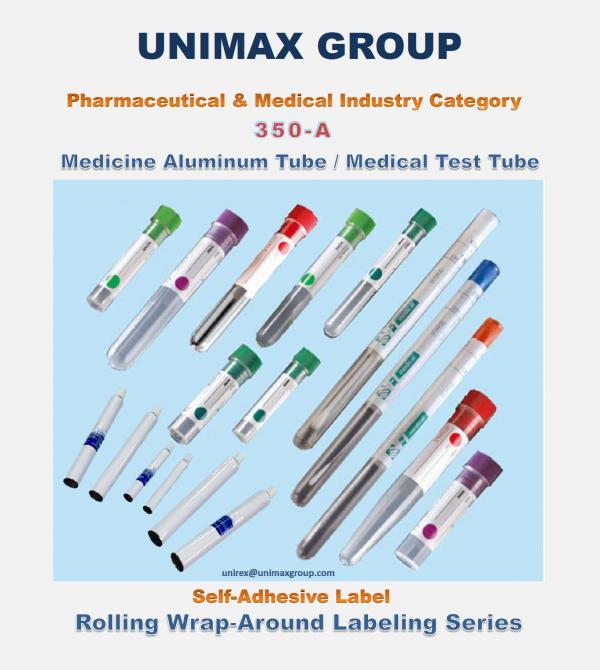

- For Cylindrical Pharmaceutical Tube or Test Tube
- Tube Manual Feeding into Star-Wheel Feeder Hopper
- Conveyor: 1600 mm (L) x 185 mm (W) x 750 mm (H)
- Conveyor: Stainless Chain with Self-Lubricant Ball Bearing
- P.O.M. Engineering Plastic Roller
- Cylindrical Substance Rolling System
- Labeling Position: Height & Forward / Backward Position Adjustment
- Machine Body & Frame: Aluminum Alloy with Anodizing Treatment
- With Emergency stop Device
- Included X-Axis Labeling-Head Angle Adjustment System
- Labeling Size: Max. 90 mm (L) x 120 mm (W) Included Base Paper
- Labeling Roll: ∮ 300 mm O.D. & ∮ 76 mm I.D.
- Labeling Speed: Maximum Approx. 60 ~ 100 pcs/min
- Machine Dimension:
  Approx.1,800 mm (L)*750 mm (W)*1,450 mm (H)

* Labeling Symmetry Precision:
   ± 0.5 ~ 1 mm (Symmetrical Both-Side)
* Labeling Position Angle Setting Adjustable

Features:

♦ Control System
* Labeling System: Japan "YASKAWA" Servo Motor Control System
* Conveyor Driving Motor: Japan "Orient" AC Motor with Reducer
* Japan "Mitsubishi" PLC Control System
* Interfaced Colorful Touch Screen Monitor "PROFACE"
* Label Sensor: German "Sick" Made in France
* Product Detecting Sensor: Japan "Keyence"
* Product Detecting Sensor: Also Depends on Product

Order Information:

• Minimum Order: Negotiable
• Branded Product
